Nauticam Canon EOS R5 Underwater Housing

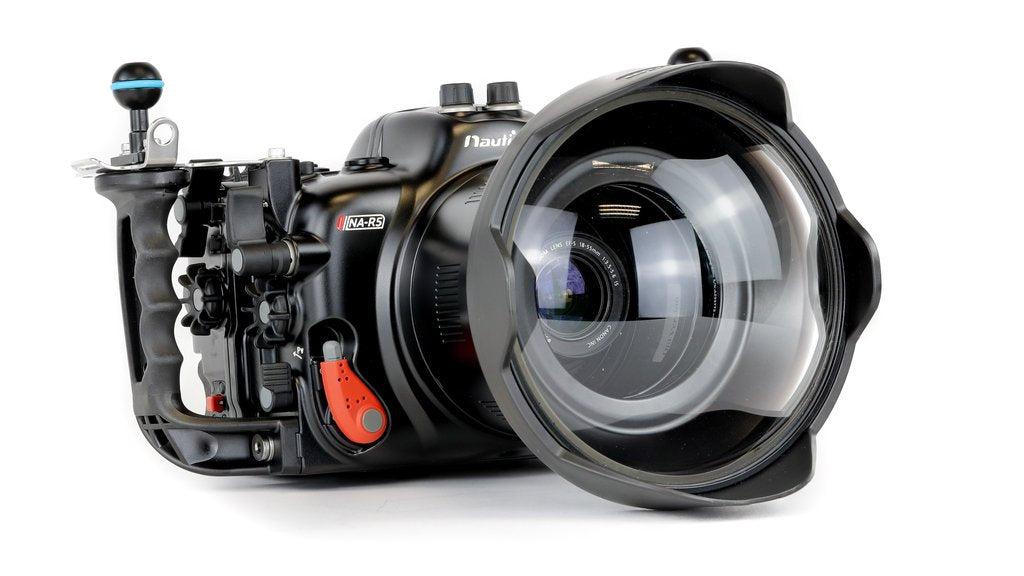

The Nauticam NA-R5 Housing for Canon EOS R5

The Canon EOS R5; Say hello to 8k!

The NA-R5 underwater housing embodies Nauticam's drive for innovation. For many, the EOS R5 is a move from a full-frame Canon DSLR. To support both the legacy and native lenses, Nauticam has integrated the NA-R5 into the N120 port system. Canon's EF to RF mount adapters can be affixed to the camera before insertion into the housing. When using the EOS R5 inside the housing with the adapter and a supported EF lens, the port and extension ring arrangement will be identical to the same setup on a Nauticam Canon N120 DSLR. As the RF lens lineup emerges, dedicated port and extension ring combinations will be listed on the Port Chart. Two lens release buttons, one for RF and one for EF lenses used with the optional Canon adapter, are located on the front of the housing to make lens removal through the port opening simple.

Mission Control

Nauticam engineers are obsessed with getting the underwater image maker unfettered access to all the necessary controls, with as many within easy reach of the ergonomic rubberized handles.

Large knurled and rubberized control dials access the camera's "main" and "sub" command dials. The two-stage trigger allows for smooth focus and firing activation. Additional buttons for "Menu", "Focus Point Selection" and others are also easily reached from the handles.

Flash Triggering

Flash triggering is achieved via one of two optional Flash Triggers, a manual LED trigger (PN 26301) or a TTL Flash Trigger (PN 26321) that use the built-in fiber optic bulkheads with optional fiber-optic cables to trigger supported strobes. For controlling strobes that do not support fiber optic flash triggering, a variety of legacy hot-shoe flash control bulkheads are available.

Vacuum Check and Leak Detection System

The NA-R5 comes with the electronics for the vacuum check and leak detection system pre-installed. This simple system allows for checking the watertight integrity of the housing before the dive as well as monitoring continuously throughout the dive.

Key Camera Specifications:

• 45MP full-frame Dual Pixel CMOS sensor
• 8K video, with option for Raw or 10-bit 4:2:2 C-log or HDR PQ
• Up to 4K/120p, or oversampled 4K up to 30p
• 100% coverage Dual Pixel II AF system
• 12 fps / 20 fps bursts (mech. / elec. shutter)
• 5.76M-dot OLED EVF with 120fps max refresh rate
• 1x CFExpress slot, 1x UHS-II SD slot
• Claimed weather-sealing to EOS 5D Mark IV levels
